BMOT 12 Weg Sicherungshalter 12V~32V Boot KFZ LKW
BMOT 12 Weg Sicherungshalter 12V~32V Boot KFZ LKW
BMOT 12 Weg Sicherungshalter 12V~32V Boot KFZ LKW
BMOT 12 Weg Sicherungshalter 12V~32V Boot KFZ LKW
BMOT 12 Weg Sicherungshalter 12V~32V Boot KFZ LKW
BMOT 12 Weg Sicherungshalter 12V~32V Boot KFZ LKW
Ausverkauft
  • SKU: MR7864*1
  • Verfügbarkeit:Ausverkauft

BMOT 12 Weg Sicherungshalter 12V~32V Boot KFZ LKW

BESCHREIBUNG

The Ideal 12-Circuit Blade Fuse Block for Vehicular and Marine Dc Electrical Systems.

This fuse box consolidates branch circuits so you don’t have to fuss over the messy tangled wiring associated with in-line fuses. Storing up to 12 ATC/ATO/ATF blade fuses up to 20A max per circuit, this blade fuse box is perfect for automotive, marine, outdoor and home applications.

Negative Ground Connections & Dual Positive Power Connections.

Our fuse block has negative ground connections (1x ground input and 12x ground outputs) for superior functionality. Additionally, dual positive power connections achieve a high maximum operating amperage of 100A.

Its clever design features a thumbscrew affixed to the cover to prevent being misplaced, stainless steel screws for corrosion protection, recessed mounting holes to prevent shorts, comes with labeling stickers, and a 1” fuse placement clearance for compatibility with E-T-A Thermal Circuit Breakers.

Produktvorteile:

* Das Produkt nimmt PBT Anti-Flammschutz-, Hoch-Niedrigtemperatur- und Umweltschutzmaterialien an, die völlig den Anforderungen des Sicherungshalters genügen, muss gute mechanische Stärke, Isolierung.

* Alle Stromschienen und Sicherungsklemmen sind aus vernickeltem Kupfer, um Korrosionsbeständigkeit und optimale Leitfähigkeit zu gewährleisten.

* Alle Befestigungselemente sind aus Edelstahl gefertigt, die sich schneller installieren lassen, und die Sicherheitsbox wird mit selbstschneidenden Schrauben befestigt, was die Installation einfacher und sicherer macht.

* Anzeige-LED-Design für jede an das Gerät angeschlossene Sicherung. Wenn die Sicherung getrennt wird, leuchtet die rote LED. Sie können sofort wissen, welche Sicherung defekt ist. Dies ist eine bequeme und zeitnahe Verarbeitung.

Spezifikation:

Material: PBT und PC

Größe: ca.138.25 * 88 * 36.5 mm

Nenneingangsspannung: 58 VDC

Nenn-Eingangsstrom: 100A

20A pro Stromkreis

Features:

12-circuit ATC/ATO/ATF blade fuse block; max 20A per circuit

LED indicator displays circuit issues

Negative ground connections (1x ground input; 12x ground outputs; dual positive power connections achieve high operating amperage of 100A max. per fuse block

Marine-grade stainless steel input & output screws provide corrosion protection

1” fuse placement clearance compatible with E-T-A Thermal Circuit Breakers

Thumbscrew affixed to cover; labeling sticker included

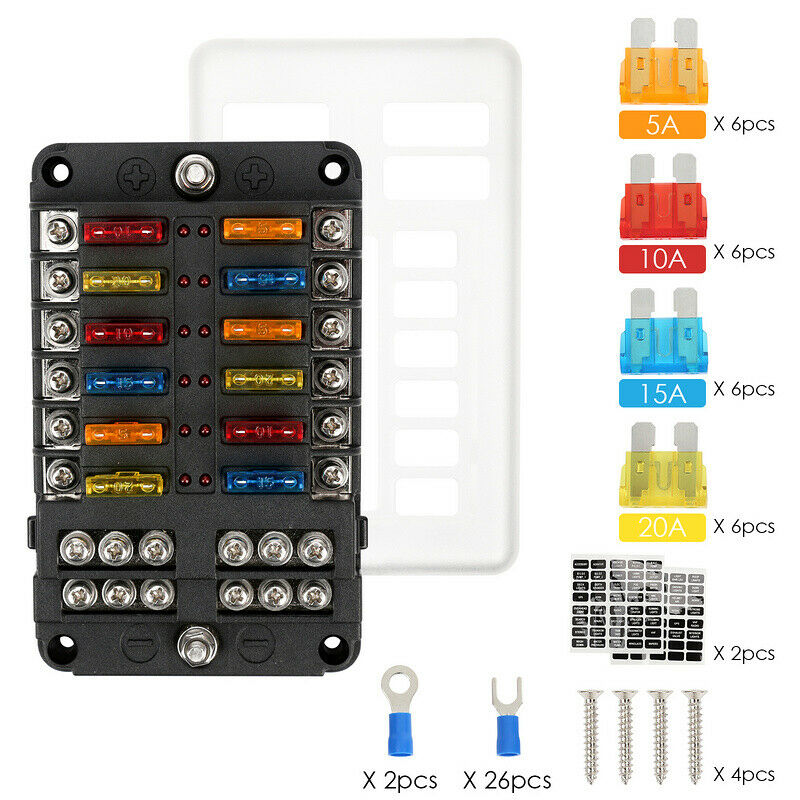

Lieferumfang:

1 x Fuse Box Holder

2 x Label Stickers

4 x Mount Screws

6 x 5A Fuse Blades

6 x 10A Fuse Blades

6 x 15A Fuse Blades

6 x 20A Fuse Blades

28 x Anschlussklemme
